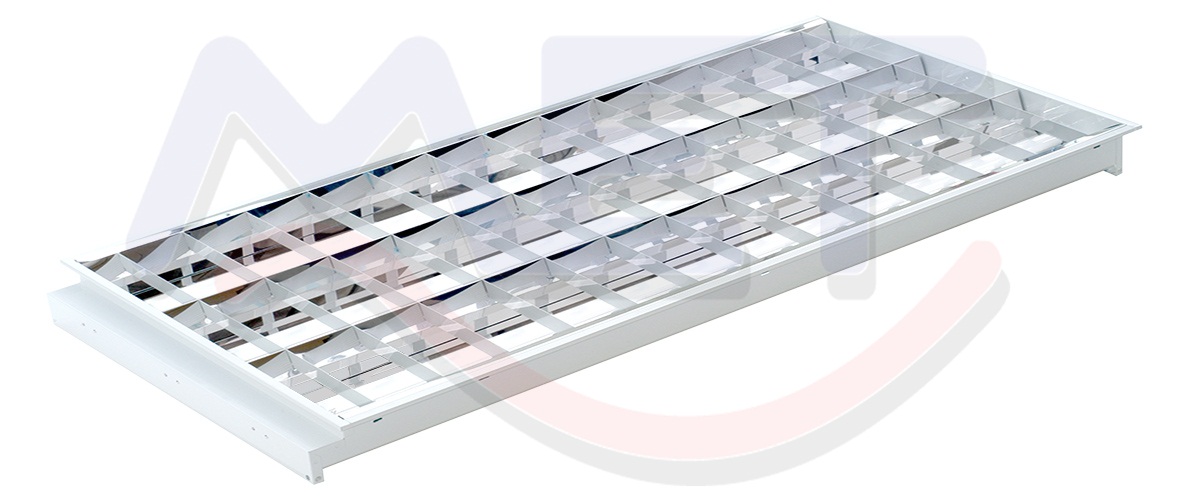

Square Fitting

T-Bar & Gypsum Square Fitting with Aluminum Reflector

SPECIFICATION

Housing :
Steel sheet thickness of 0.5-0.8 mm. And all metal parts are rust-proofed after fabrication to prevent any corrosion (zine phosphate) and finished with high-grade epoxy polyester powder coating.
Reflector :
99.99 % purity anodized aluminum reflector to provide total reflectance of TR 95% mirror-finish, parabolic reflectors machined to provide optimum optical performance for maximum high-output-ratio.
Louver :
99.90% anodized aluminum reflector to provide total reflectance of up to TR 87% - 95% Christmas tree profile crossbars reduce glare significantly.
Lamp holder :
Rotary lock (G5) lamp holder certified by TIS NO.344-2549.
Starter holder
Rotary lock certified by TIS NO.344-2549.
Wire
Thw size 0.5-1.0 sqmm.70 ํc-105 ํc certified by TIS NO.11-2531.

Products
Model No No. of Lamps Dimension
Ask MCM243 2 x 36w. T8 300mm. x 1200mm.
Ask MCM346 3 x 36w. T8 600 mm. x 1200 mm.
