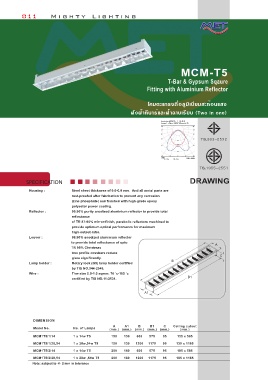

Page 16 - MIGHTY - CATALOGUE 2014-2015

011 Mighty Lighting

MCM-T5

T-Bar & Gypsum Sqaure

Fitting with Aluminium Reflector

โคมตะแกรงถี่อลูมิเนียมสะท้อนแสง
ฝังฝ้าทีบาร์และฝ้าฉาบเรียบ (Two in one)

Luminaire: MCM1T5 -1-28_AL01
Lamps: 1 x Fluor. 28W 4' Silhouette T5
105° 105°
90° 90°
75° 75°

60° 60°
200
45° 45°
300
400
30° 15° 0°° 0 15° 30°
cd/klm LOR=88%
C0 - C180 C90 - C270


SPECIFICATION DRAWING
Housing : Steel sheet thickness of 0.6-0.8 mm. And all metal parts are
rust-proofed after fabrication to prevent any corrosion
(zine phosphate) and finished with high-grade epoxy
polyester power coating.
Reflector : 99.90% purity anodized aluminium reflector to provide total
reflectance
of TR 87-95% mirror-finish, parabolic reflectors machined to
provide optimum optical performance for maximum
high-output-ratio.
Louver : 99.90% anodized aluminium reflector
to provide total reflectance of upto A
TR 95% Christmas
tree profile cossbars reduce C
glare significantly.
Lamp holder : Rotary lock (G5) lamp holder certified B
by TIS NO.344-2549.
Wire : Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
B1
certified by TIS NO.11-2531.

A1

DIMENSION
A A1 B B1 C Ceiling cutout
Model No. No. of Lamps (mm.) (mm.) (mm.) (mm.) (mm.) (mm.)
MCM1T5/1/14 1 x 14w T5 150 130 600 575 95 135 x 585
MCM1T5/1/28,54 1 x 28w,54w T5 150 130 1200 1175 95 135 x 1185
MCM1T5/2/14 1 x 14w T5 200 180 600 575 95 185 x 585
MCM1T5/2/28,54 1 x 28w ,54w T5 200 180 1200 1175 95 185 x 1185
Note: subject to +/- 2 mm in tolerance
