Factory Fitting

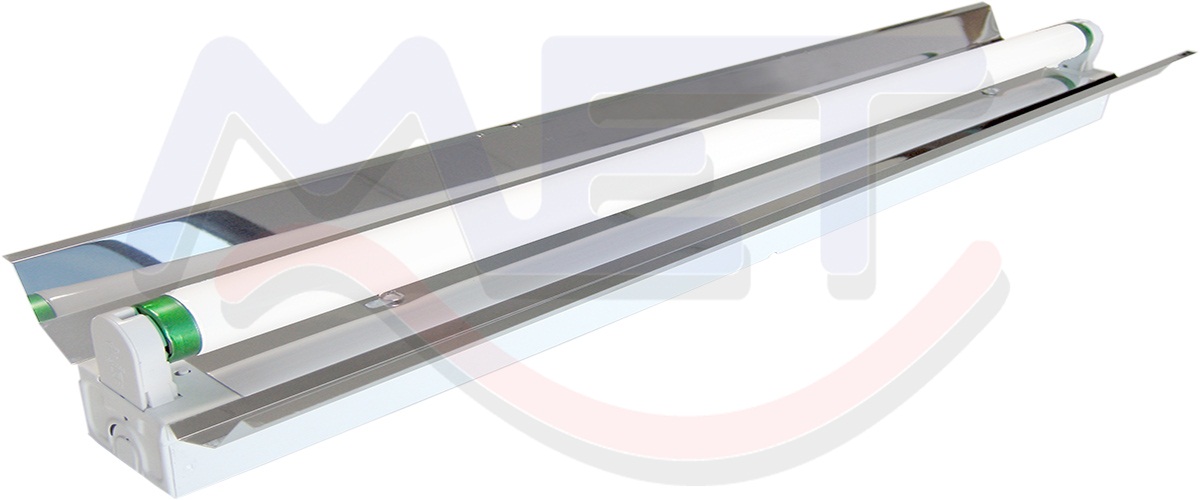

Factory Fitting with Aluminum Reflector or Metal Reflector

SPECIFICATION

Housing :
Steel sheet thickness of 0.5-0.8 mm. And all metal parts are rust-proofed after fabrication to prevent any corrosion (zine phosphate) and finished with high-grade epoxy polyester powder coating.
Reflector :
Double side aluminum reflector 99.90% purity anodized aluminum reflector to provide total reflectance of TR 87-95% mirror-finish, parabolic reflectors machined to provide optimum optical performance for maximum high-output-ratio. OR Double side steel reflector with high-grade epoxy polyester powder coating.
Lamp holder :
Rotary lock or spring lock (G13) lamp holder Certified by TIS NO.344-2549.
Starter holder :
Rotary lock certified by TIS NO.344-2549.
Wire :
Thw size 0.5-1.0 sqmm. 70๐c - 105๐c Certified by TIS NO.11-2553.

Products
Model No No. of Lamps Dimension
Ask MFW120 1 x 18w. T8 140 mm. x 613 mm.
Ask MFW120AL 1 x 18w. T8 140 mm. x 613 mm.
Ask MFW120WG-AL 1 x 18w. T8 160 mm. x 625 mm.
Ask MFW140S 1 x 36w. T8 140 mm. x 1,245 mm.
Ask MFW140S-AL 1 x 36w. T8 140 mm. x 1,245 mm.
Ask MFW22OT 2 x 18w. T8 170 mm. x 613 mm.
Ask MFW240T 2 x 36w. T8 170 mm. x 1,223 mm.
Ask MFW240T-AL 2 x 36w T8 170 mm. x 1,245 mm.
Ask MFW-V1128-AL 1 x 28w. T5 170 mm. x 1,173 mm.
Ask MRW128-AL 1 x 28w. T8 50 mm. x 1,175 mm.
Ask MRW140CS 1 x 36w. T8 150 mm. x 1,235 mm.
Ask MRW140CS-AL 1 x 36w. T8 150 mm. x 1,235 mm.
Ask MRW140S-AL 1 x 36w. T8 110 mm. x 1,245 mm.
Ask MRW140WG 1 x 36w. T8 150 mm. x 1,235 mm.
Ask MRW140WG-AL 1 x 36w. T8 150 mm. x 1,235 mm.

Download Product Speficifation
