Square Fitting

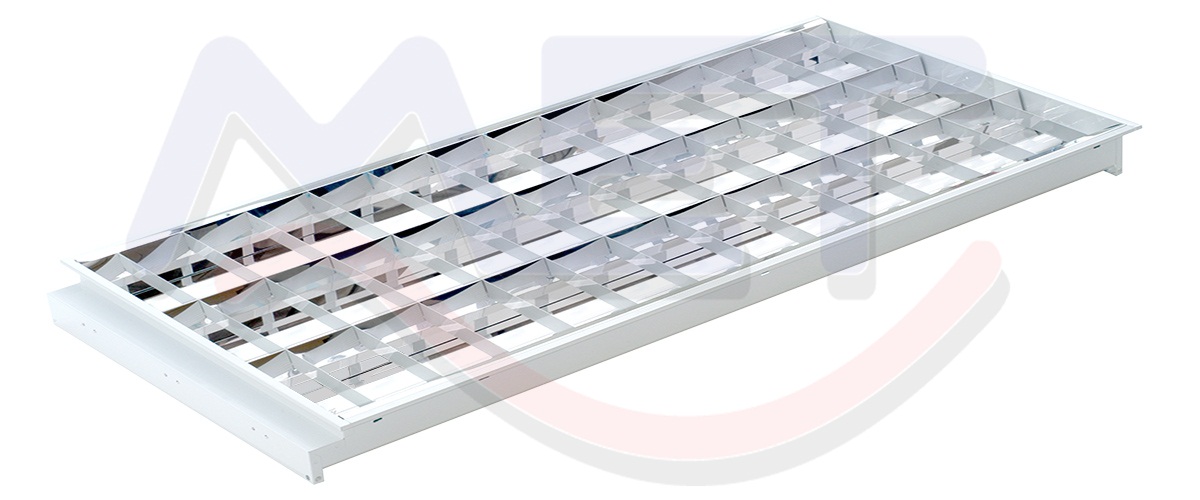

T-Bar & Gypsum Square Fitting with Aluminum Reflector

SPECIFICATION

Housing :
Steel sheet thickness of 0.5-0.8 mm. And all metal parts are rust-proofed after fabrication to prevent any corrosion (zine phosphate) and finished with high-grade epoxy polyester powder coating.
Reflector :
99.99 % purity anodized aluminum reflector to provide total reflectance of TR 95% mirror-finish, parabolic reflectors machined to provide optimum optical performance for maximum high-output-ratio.
Louver :
99.90% anodized aluminum reflector to provide total reflectance of up to TR 87% - 95% Christmas tree profile crossbars reduce glare significantly.
Lamp holder :
Rotary lock (G5) lamp holder certified by TIS NO.344-2549.
Starter holder
Rotary lock certified by TIS NO.344-2549.
Wire
Thw size 0.5-1.0 sqmm.70 ํc-105 ํc certified by TIS NO.11-2553.

Products
Model No No. of Lamps Dimension
Ask MCM123 1 x 18w. T8 300 mm. x 600 mm.
Ask MCM141 1 x 36w. T8 150 mm. x 1,200 mm.
Ask MCM143 1 x 36w. T8 300 mm. x 1,200 mm.
Ask MCM1T5-1-28 1 x 28w. T5 150 mm. x 1,200 mm.
Ask MCM226 2 x 18w. T8 600 mm. x 600 mm.
Ask MCM243 2 x 36w. T8 300 mm. x 1,200 mm.
Ask MCM246 2 x 36w. T8 600 mm. x 1,200 mm.
Ask MCM2T5-3-28/54 2 x 28 w./54w. T5 300 mm. x 1,200 mm.
Ask MCM2T5-6-28/54 2 x 28 w./54 w. T5 600 mm. x 1,200 mm.
Ask MCM346 3 x 36w. T8 600 mm. x 1,200 mm.
Ask MCM4T5-6-28/54 4 x 28 w./54 w. T5 600 mm. x 1,200 mm.
Ask MWM141 1 x 36w. T8 170 mm. x 1,265 mm.
Ask MWM243 2 x 36w. T8 320 mm. x 1,265 mm.
Ask MWM246 2 x 36w. T8 620 mm. x 1,265 mm.
Ask MWM346 3 x 36w. T8 620 mm. x 1,265 mm.
