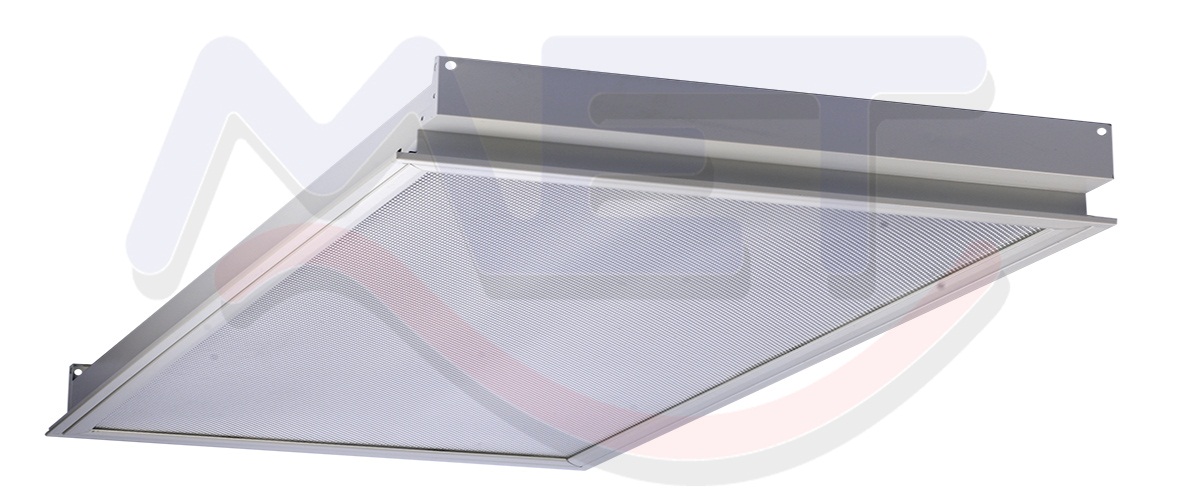

Prismatic Diffused Fitting

T-Bar & Gypsum Prismatic Diffused Fitting with Aluminum Reflector

Housing :
Steel sheet thickness of 0.5-0.8 mm. And all metal parts are rust-proofed after fabrication to prevent any corrosion (zine phosphate) and finished with high-grade epoxy polyester powder coating.
Reflector :
99.99 % purity anodized aluminum reflector to provide total reflectance of TR 95% mirror-finish, parabolic reflectors machined to provide optimum optical performance for maximum high-output-ratio.
Diffuser :
Is made of prismatic acrylic with 2.0-3.0 mm. thickness Option diffuser: (**)
Prismatic = PM , Opal = MU , Stipple = ES , Clear = CS
Frame for diffuser :
Extrude aluminum with high-grade epoxy polyester powder coating.
Lock type :
Spring latch locker system (inner).
Lamp holder
Rotary lock (G5) lamp holder certified by TIS NO.344-2549.
Wire
Thw size 0.5-1.0 sqmm.70 ํc-105 ํc certified by TIS NO.11-2531.

Products
Model No No. of Lamps Dimension
Ask MCP346PM-AL 3 x 36w. T8 600 mm. x 1200 mm.
